A CO2 Generator and Reactor

Nadeem Faiz (faiz at me.udel.edu)

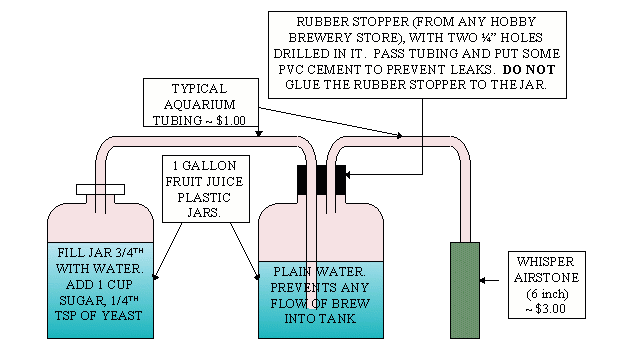

CO2 Yeast System

[Yeast System Diagram]

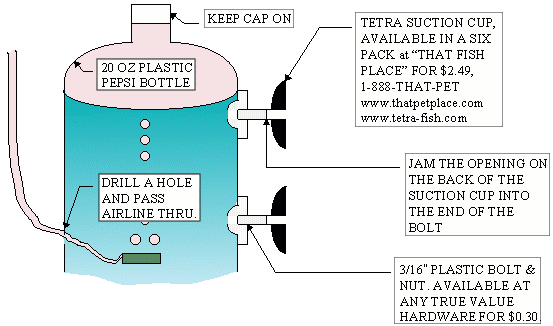

CO2 Reactor

[Reactor Diagram]

Attach the bottle to one of the side walls of the aquarium using the suction cups. CO2 will bubble out of the airstone and collect in the bottle. This resevoir of CO2 will slowly dissolve into the water. Any excess CO2 will simply bubble away. In case the CO2 production drops off, the resevoir will provide a supply while a new batch of brew is prepared.
Up to CO2 <- Plants <- The Krib
This page was last updated 29 October 1998
